疊加式平衡閥您所在的位置：首頁 > 產品展示 > 疊加式平衡閥

產品型號：MRB

[1]

上一產品：電磁止逆閥

下一產品：疊加式液控單向閥

MRB

◆ 特點

● MRB 系列積層型平衡閥為工作母機主軸頭油壓配件,提供良好的閥件.
● 閥本體鑄鐵強度夠且耐久性,壽命長．
● 內部硬鋼原件提高新產品壽命．
● 六角另螺絲或把手兩種流量調整選擇.

◆ FEATURES

1. MRB series modular balance valves are proper and excellent for the hydraulic assembly of the spindle head
off working machine.
2. Casting iron valve bodies are provide strength and durability for longer life.
3. Internal hardened steel components also provide longer life.
4. Two flow adjustment options are:hex.screw or knob.

◆ SPECIFICATIONS 規格

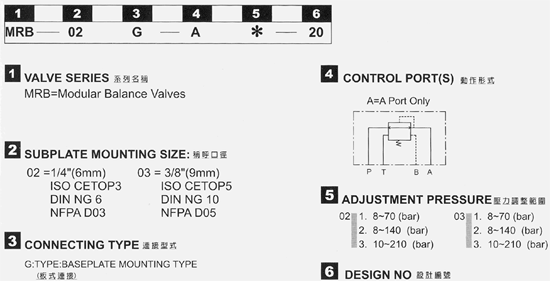

Model Number
型式號碼

Maximum Pressure
最大壓力 bar

Cennecting PT
適用管徑

Maximum Flow
最大流量 lpm

Weight
重量 Kg

MRB-02G-A

250(3625 PSI)

1/4"

30(7.93 GMP)

1.5(3.3 lbs)

MRB-03G-A

3/8"

50(13.2 GMP)

3.5(7.7 lbs)

Fluid Type 液體型式	ISO VG 32,46,68
Viscosity 黏性 cSt	10~400(59~1854 SSU)
Operating Temperature 操作溫度 ℃	-15~70(-5~158) °F
Contamination Level 污染標準	β10≧75,Under NAS Class 12,25
Surface Treatment 表面處理	Zinc Phosphate Compound 鋅磷酸鹽化合物
